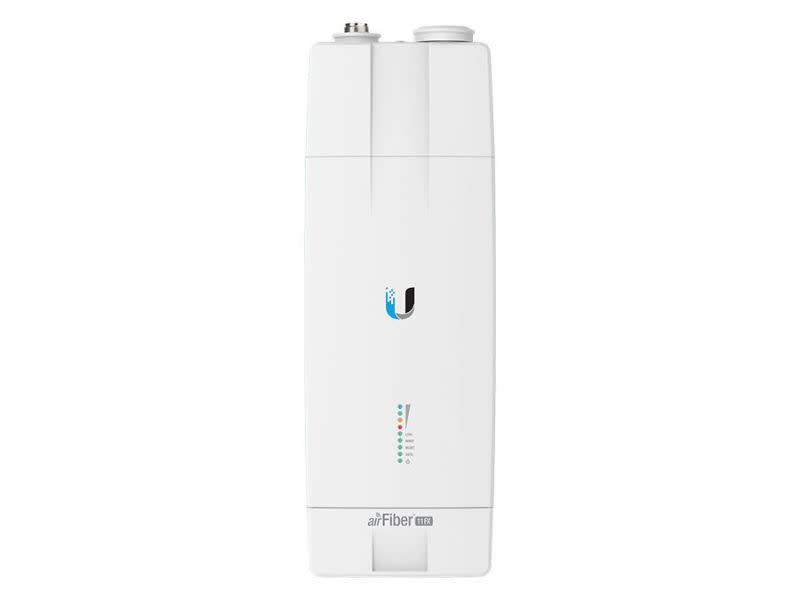

airFiber AF-11(Radio)

Dimensions

327 x 112 x 86 mm

Weight

2.26 kg (5.0 lb)

RF Connectors

(4) SMA Weatherproof, Two per Chain:

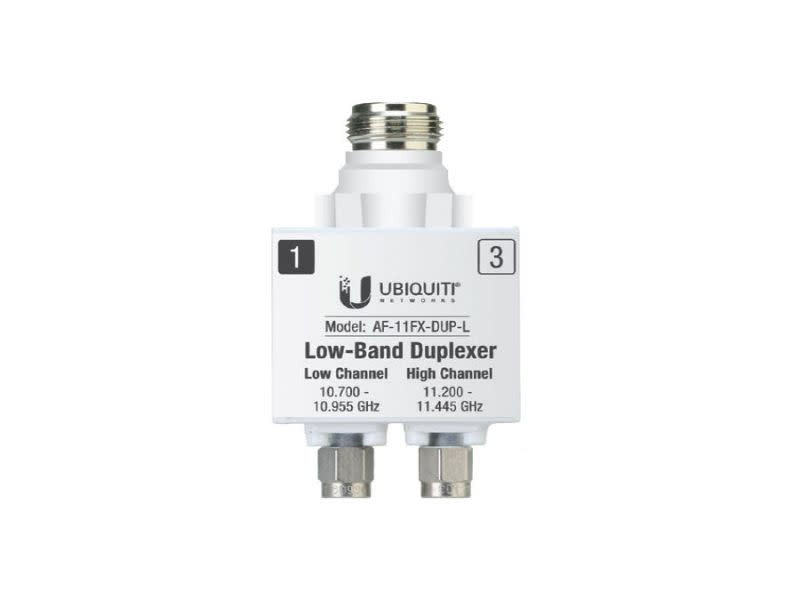

TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer

Power Supply

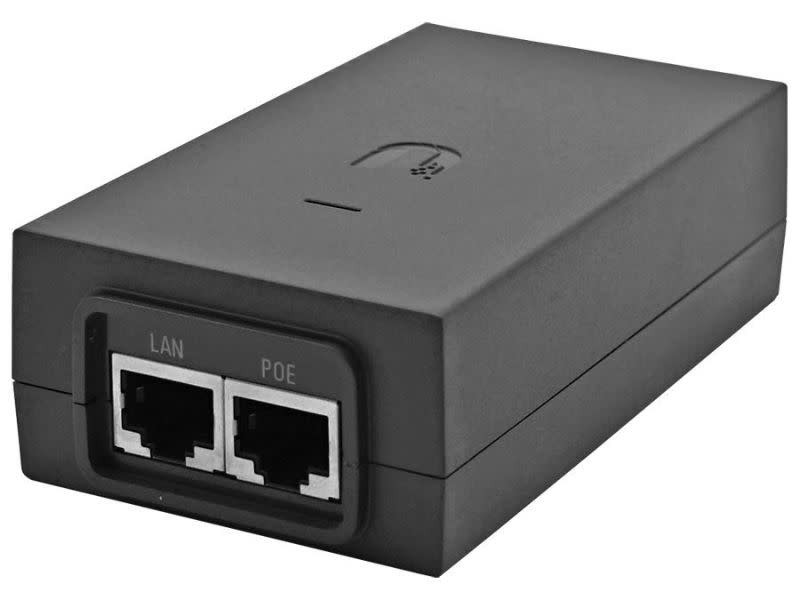

50V, 1.2A PoE Gigabit Adapter (Included)

Power Method

Passive Power over Ethernet, DC Power Block)

Power Supply

 UniFi PoE Switch

Supported Voltage Range

 38-56VDC

Certifications

FCC Part 101, ETSI EN 302 217

Mounting

 AF-11G35 Mount Compatible

Operating Temperature

 -40 to 55° C (-40 to 131° F)

Networking Interface Data Management

(1) 10/100/1000 Ethernet Port

(1) 10/100 Ethernet Port

System (Duplexer)

Processor

 INVICTUS™ 2 IC

Maximum Throughput

1.2+ Gbps

Encryption

128-bit AES

OS

airOS F

Wireless Modes

 SISO/MIMO

Operating Frequency

10.7-11.7 GHz

Max. Conducted TX Power

30 dBm

Frequency Accuracy

± 1 ppm

Channel Bandwidth

3.5/5/7/10/14/20/28/30/40/50/56 MHz

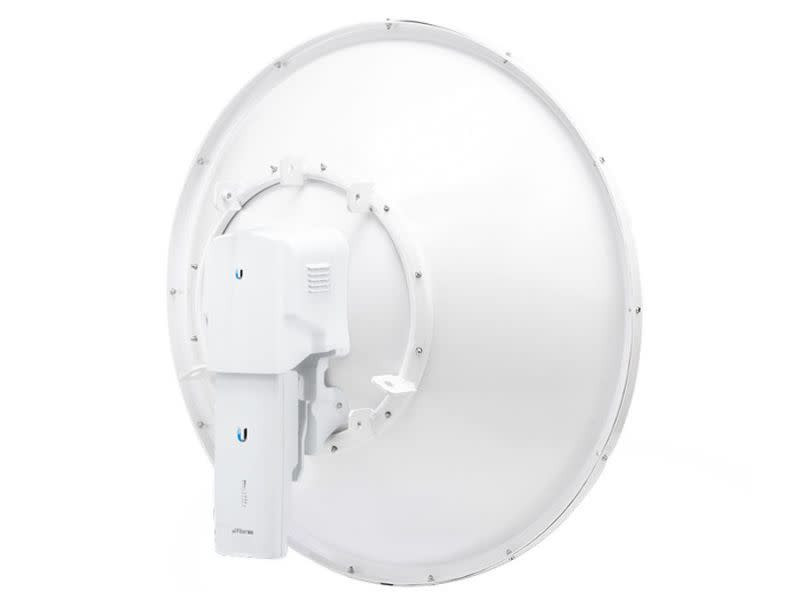

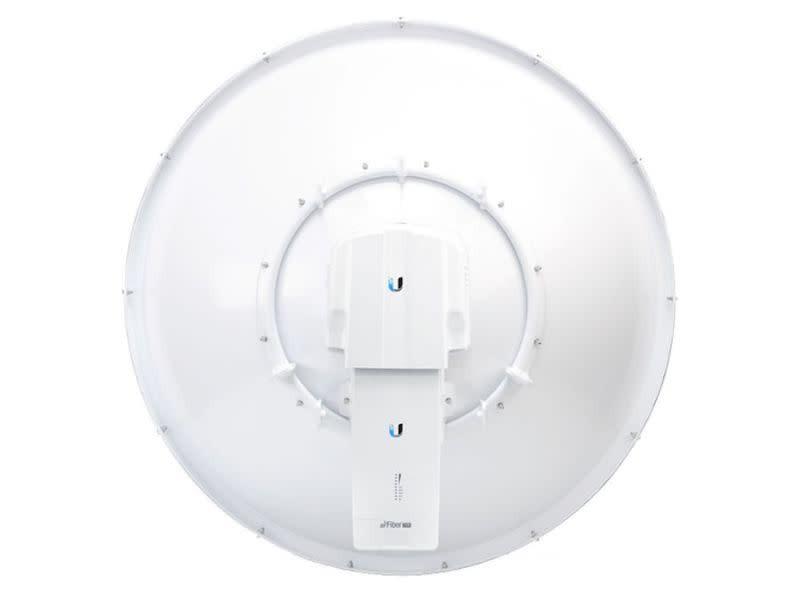

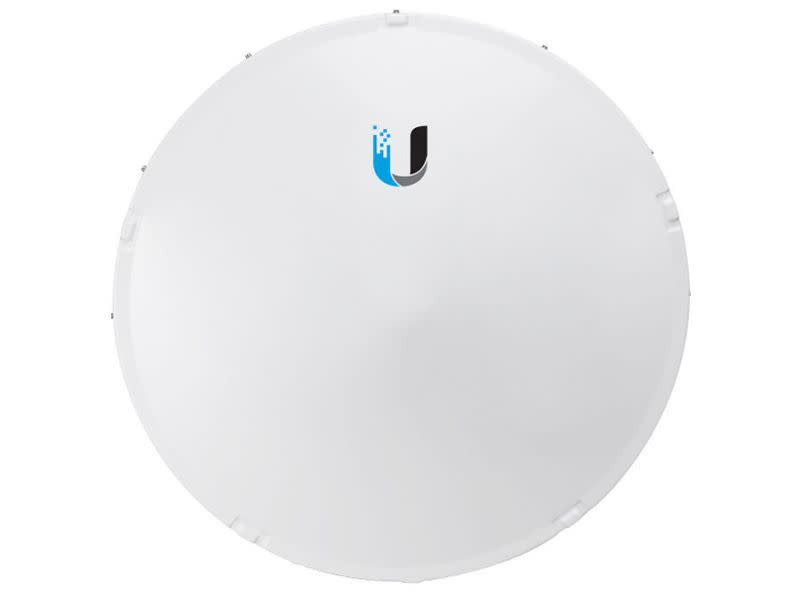

airFiber AF‑11G35 (Dish)

Dimensions

811 x 811 x 460 mm

Weight

Mount Not Included

7.14 kg (15.74 lb)

Mount Included

11.85 kg (26.12 lb)

Frequency

10.3 to 11.7 GHz

Gain

35 dBi

HPOL Beamwidth

 2.5°

VPOL Beamwidth

2.5°

Maximum VSWR

2:1

Wind Loading

 1538 N @ 200 km/h

Polarization Default After Rotating OMT

H/V ± 45°

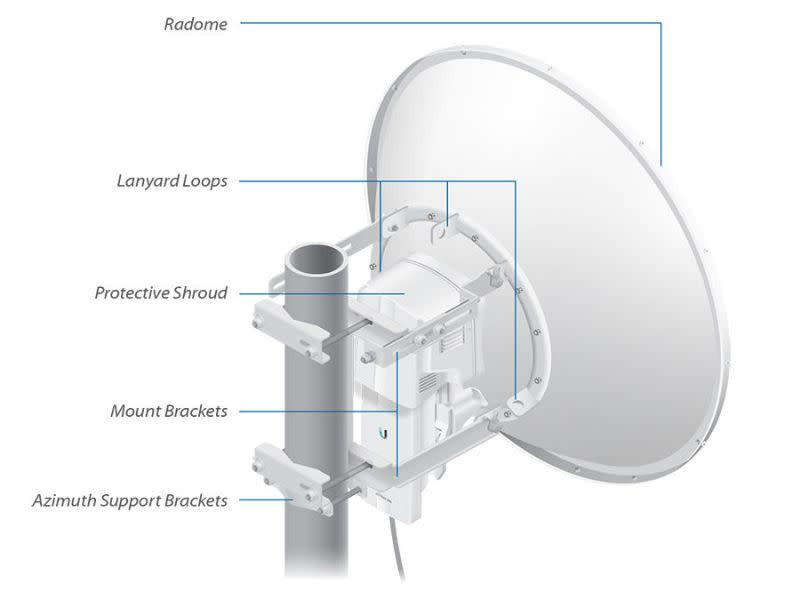

Mounting

 Pole Mount

Specifications

• Antenna Gain: 35dBi
• Beam-width: 2.5°
• Data Rate: 1.2+ Gbps
• Ethernet Ports: Data: 10/100/1000 ; Management: 10/100
• Hardware Button: Reset
• Max. Power Consumption: 36W
• Mounting: Antenna: Pole-Mount Radio: Antenna or Pole-Mount
• Operating System: airMAX ac
• Operating Temperature: -40°C to 55°C
• PoE Input: 38V-56V Passive PoE
• PoE Output: None
• Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 38V-56V
• USB Ports: None
• Dimensions: Antenna: ø 811 x 460mm Radio: 327 x 112 x 86mm
• Weight: Antenna: 11.85kg Radio: 2.260kg
