Advanced Switching Technology for the Masses

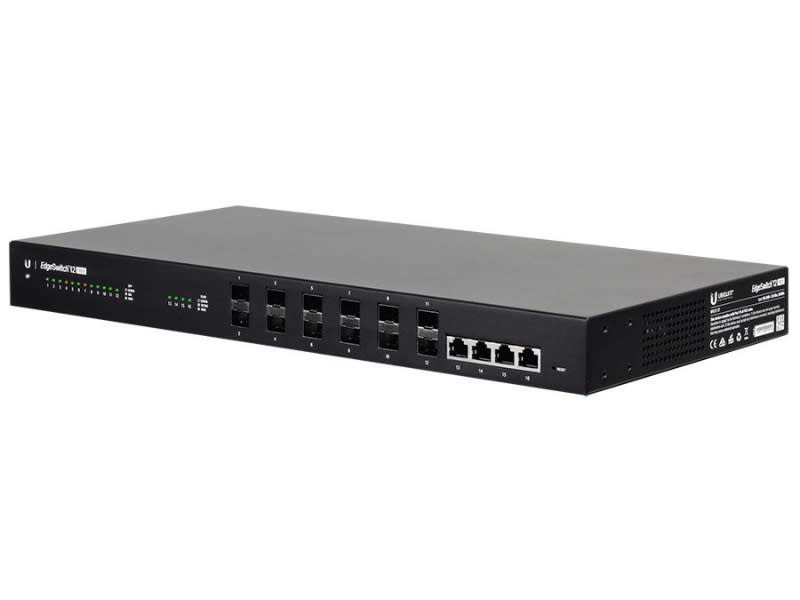

Build and expand your network with Ubiquiti Networks® EdgeSwitch® Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch,delivering robust performance and intelligent switching for high‑bandwidth networks.The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols,and also provides Layer-3 routing capability.

Switching Performance

The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.For its total, non-blocking throughput,the EdgeSwitch Fiber supports up to 16 Gbps

Distribution Layer

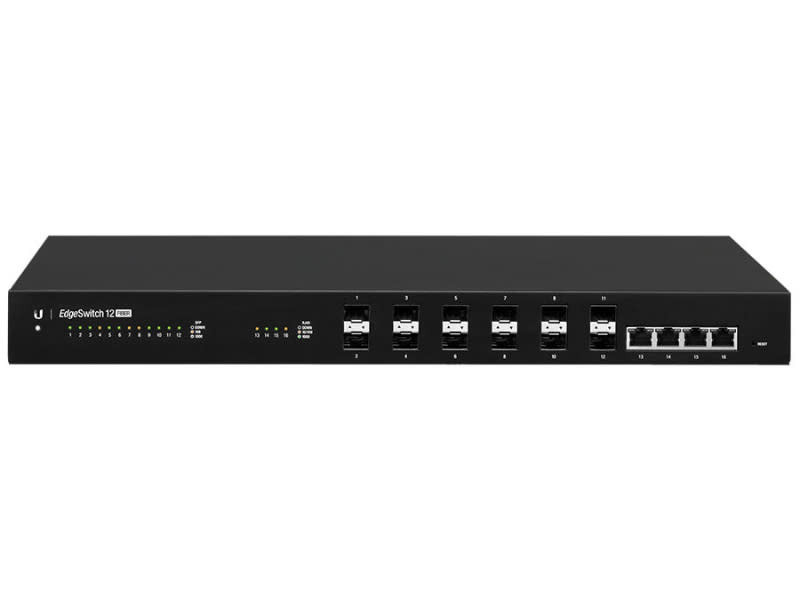

The EdgeSwitch Fiber offers high performance and low latency as an aggregation switch.For fiber connectivity, it features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

Easy Management

The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™), which is a comprehensive management controller featuring an easy-to-use UI. You can use a single control plane to manage registered EdgeMAX® devices across multiple networks and sites.

Comprehensive User Interface

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.For advanced users, an industry‑standard command -line interface (CLI) is available through the serial console port, telnet, and SSH

Powerful Functionality

The EdgeSwitch Fiber uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:

     • MSTP/RSTP/STP

     • VLAN, Private VLAN, Voice VLAN

     • Link Aggregation

     • DHCP Snooping, IGMP Snooping

     • TACACS+, RADIUS, 802.1X, MAC Filtering, ACL

     • DiffServ, CoS

     • Static Routing

     • DHCP Server Functionality

Specifications

• Ethernet Ports: 4x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 56W

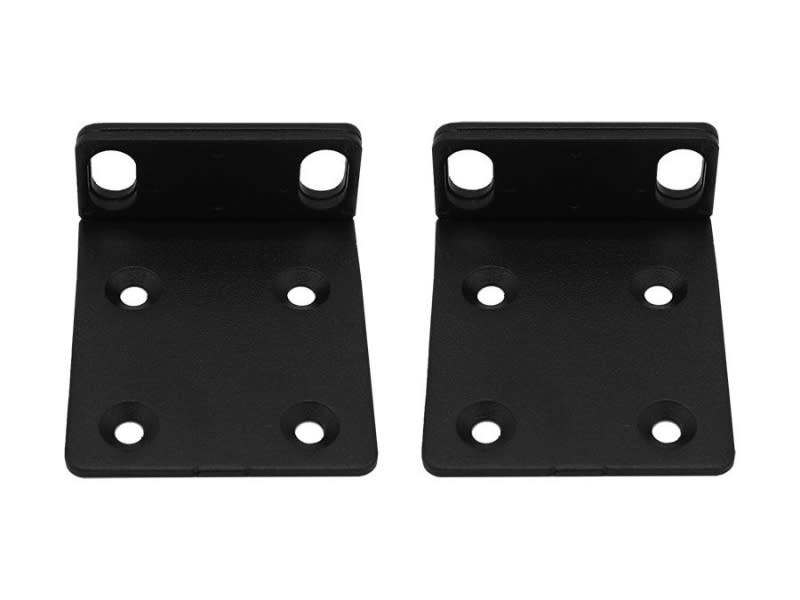

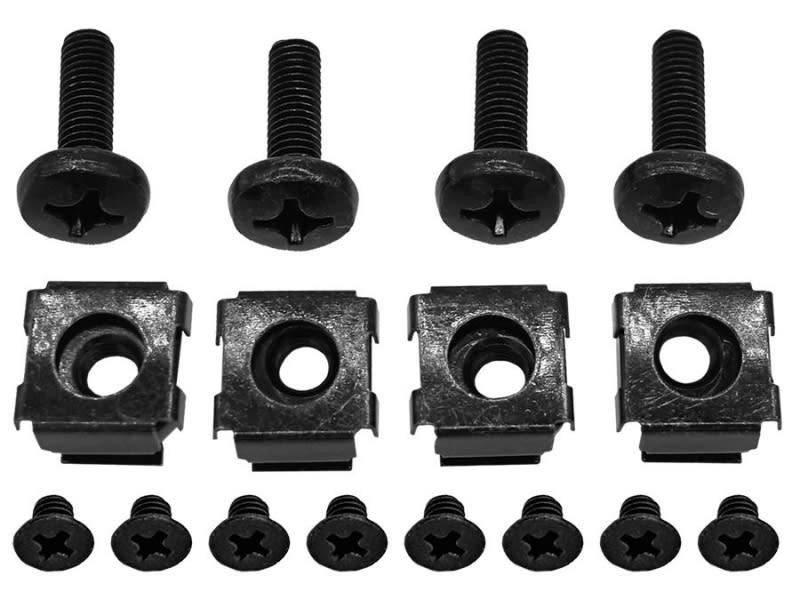

• Mounting: Desktop or Rack-Mount
• Operating System: EdgeMAX
• Operating Temperature: -5°C to 40°C
• PoE Input: None
• PoE Output: None

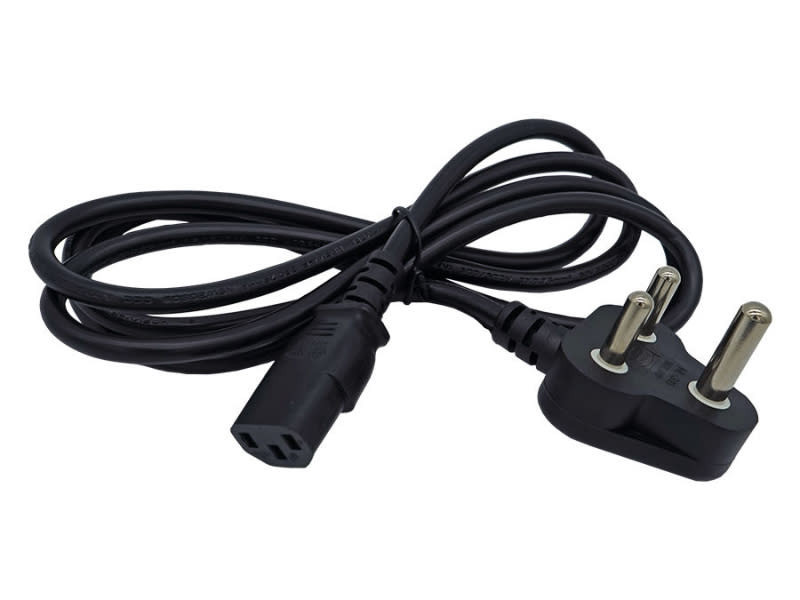

• Power Input: 1x IEC Power Cord (Included)
• Serial Interface: 1x RJ45 Ethernet In/Out Band
• SFP Ports: 12x 1.25Gbps
• Supported Voltage Range: 100V-240V
• Dimensions: 443 x 221 x 43mm
• Weight: 2.68Kg
