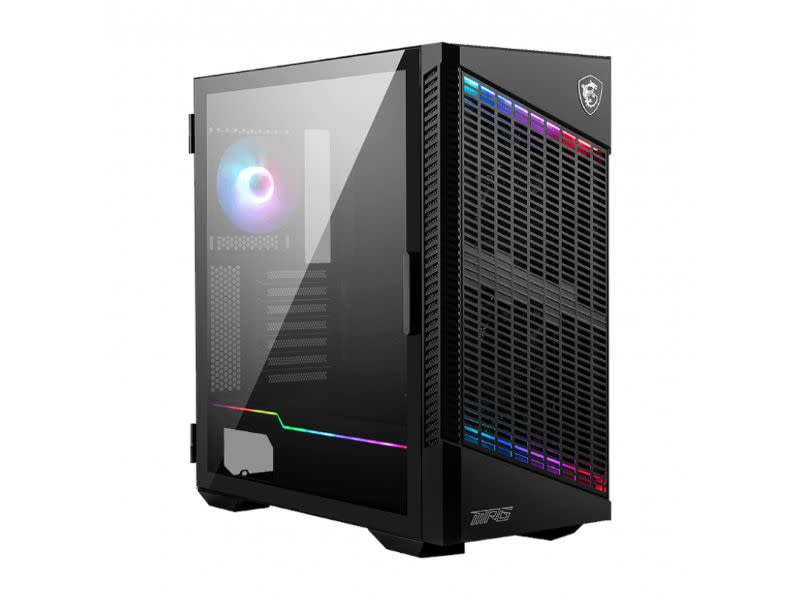

The MSI MPG VELOX 100P Airflow ATX Gaming Chassis is optimized to provide generous and effective airflow for system cooling with vents built throughout the system. The MPG VELOX 100 Series comes with 4 fans and can mount up to 7 fans for additional cooling. The 3mm hinged tempered glass swinging window offers the best durability and system accessibility while giving you a great view of your system setup.

Equip your battle station like no other with the MPG VELOX 100 Series. Inspired by speedy patterns and lively lighting effects, the MPG VELOX 100 Series is sure to help you dominate the battlefield with unmatched power and performance. The MPG VELOX 100P AIRFLOW’s front panel is inspired by the liveliness of raves and festivals. It is well ventilated for the best cooling performance while featuring two stunning strips of ARGB lighting.

The MSI MPG A850GF 850W 80PLUS Gold Modular Power Supply is perfect for NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connecting according to the power connector design of different graphics cards.

The efficiency of your power supply directly influences your system’s performance and your power consumption. Thanks to a certification rating of 80 PLUS Gold, the MPG A850GF promises lower energy consumption and higher efficiency. Aiming for unwavering product quality and performance stability, the MPG gaming power supply also comes with 100% Japanese 105° C capacitors and solid capacitors.

FEATURES:

• Optimized to provide generous and effective airflow for system cooling
• Vents built throughout the system
• Vertical GPU bracket Support
• Comes with a side air vent that can support up to 2 fans / 240mm radiator.
• The MPG VELOX 100 Series can mount up to 7 fans.
• Supports the NVIDIA GeForce RTX™ 30 Series GPUs
• Fully modular cable design
• Flat cable equipment
• 80 Plus Gold certified for high efficiency
• 100% all Japanese 105°C capacitor
• Active PFC design

SPECIFICATIONS:

MSI MPG VELOX 100P AIRFLOW ATX GAMING CHASSIS

Form Factor: Mid Tower

Motherboard Form Factor Support: ATX / Micro-ATX / Mini-ITX

I/O Ports:

• 2 x USB 3.2 Gen 1 Type-A (5Gbps)
• 1 x USB 3.2 Gen 2×2 Type-C (20Gbps)
• 1 x Audio-out
• 1 x Mic-in

Drive Mount Support: 2 x 2.5″ / 2 x 3.5″

Expansion Slots: 7

Maximum GPU Length: 380 mm

Maximum CPU Cooler Height: 175 mm

Power Supply Support: ATX

Maximum PSU Length: 220 mm

Fan Size Support:

• Front: 3 x 120 mm / 3 x 140 mm
• Top: 3 x 120 mm / 2 x 140 mm
• Rear: 1 x 120 mm
• Side: 2 x 120 mm / 2 x 140 mm

Pre-installed Fan Size:

• Front: 3 x 120 mm
• Rear: 1 x 120 mm

Pre-installed Fan Type:

• Front: 3 x Non LED Fan
• Rear: 1 x ARGB Fan

Radiator Size Support:

• Front: 120 / 140 / 240 / 280 / 360 mm
• Top: 120 / 140 / 240 / 280 / 360 mm
• Rear: 120 mm
• Side: 120 / 240 mm

Product Dimensions: 47.4 x 23.1 x 49 cm

Product Weight: 8700g

MSI MPG A850GF 850W 80PLUS GOLD MODULAR POWER SUPPLY

• Power Wattage:850W
• Efficiency: Up to 90% (80 Plus Gold)
• PSU Form Factor: ATX
• Fan Size: 140 mm
• PFC Type: Active PFC
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

Connectors:

• 24-Pin ATX: 1
• 8-Pin(4+4) CPU: 2
• 8-Pin(6+2) PCI-E: x6
• SATA: 8
• Molex: 5

AC Input: 100V~240V

DC Output:

• +5V/22.0A
• +3.3V/22.0A
• +12VMBPH/25.0A
• +12VCPU/25.0A
• +12VVGA1/40.0A
• +12VVGA2/40.0A
• -12V/0.3A
•  +5Vsb/2.5A

Dimensions: 15 x 16 x 8.6 cm

WHAT'S IN THE BOX:

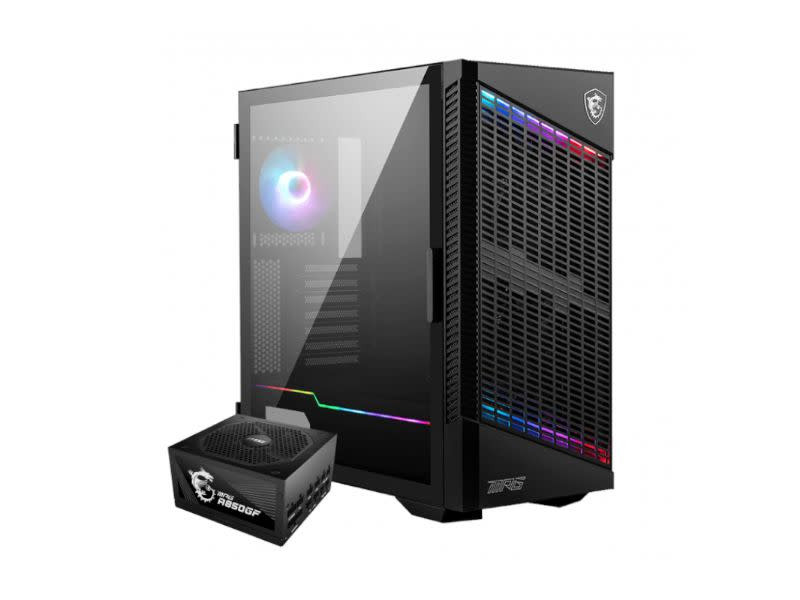

• MSI MPG VELOX 100P Airflow ATX Gaming Chassis – Black x1
• MSI MPG A850GF 850W 80PLUS Gold Modular Power Supply – Black x1
• Modular Cables Set x1
