Description

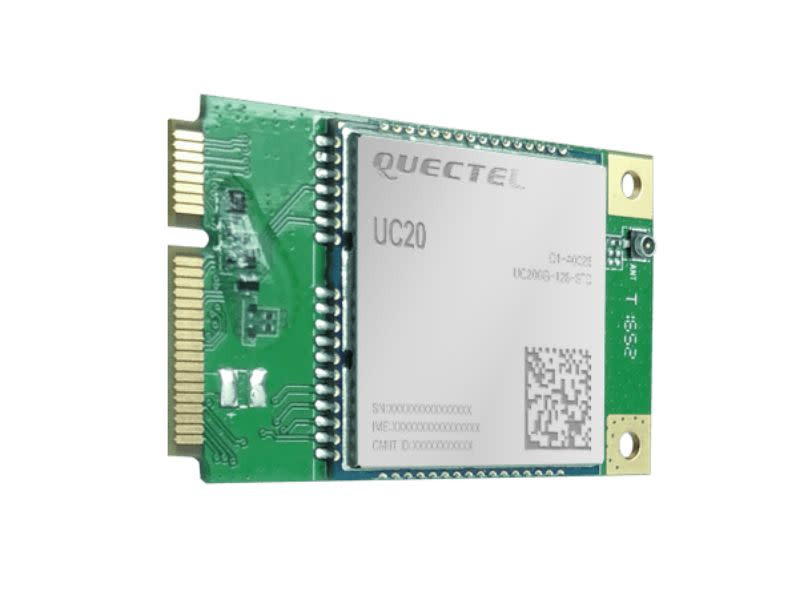

The compact profile of 30.0mm × 50.95mm × 4.9mm in standard Mini PCIe form factor and the high integration level enable integrators and developers to easily design their applications and truly benefit from the low power consumption and convenient Plug and Play function.

With an extended operation temperature range from -40°C up to +80°C, UC20 Mini PCIe functions reliably in extreme environments, and thus it is ideal to be used in outdoor or indoor sites devoid of cooling and heating systems.

A rich set of Internet protocols, industry-standard interfaces (USB/UART/PCM/LED_WWAN#/GNSS) and abundant functions (USB serial drivers for Windows 7/8/8.1/10, Windows CE, Linux, Android) extend the applicability of the module to a wide range of commercial and industrial M2M applications.

Key Benefits

• Worldwide UMTS/HSPA+ and GSM/GPRS/EDGE coverage
• Standard Mini PCIe form factor maximizes the convenience for customers to design and use
• High-quality data and image transmission even in harsh environment
• High sensitivity GNSS receiver available for applications requiring fast and accurate fixes in any location
• Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
• Robust mounting and interfaces
