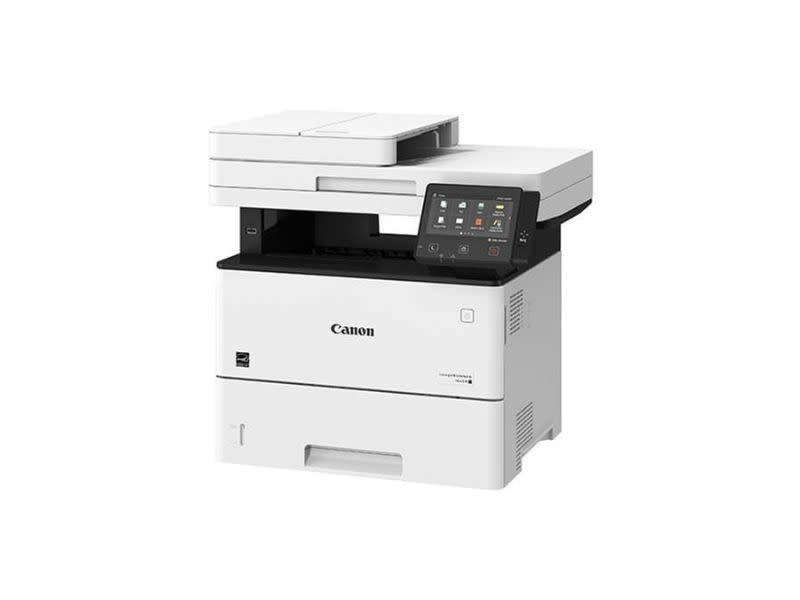

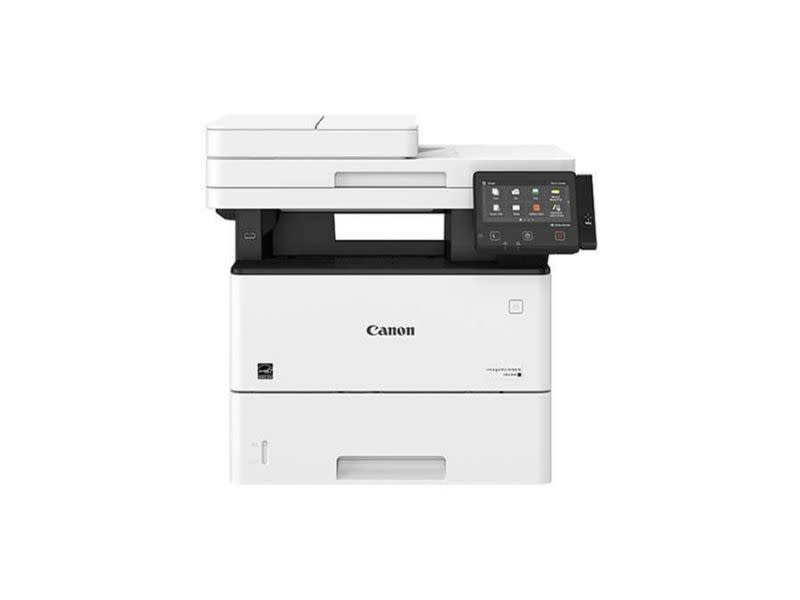

Canon imageRUNNER 1600 Series

Highly efficient A4 mono multifunction devices with super-fast scanning capabilities and advanced mobile connectivity options

Reliable and versatile, offering a wide range of functions tailored to suit demands of busy work groups

Featuring intelligent programmes to speed-up and simplify the printer’s workflow

Increased productivity

Improve workflow efficiency with super-fast outputs, large paper input capacity and rich media support.

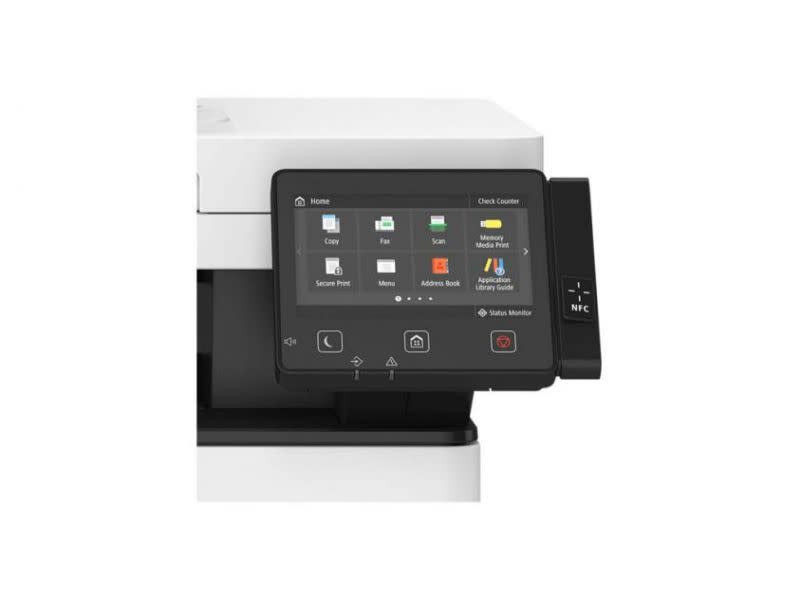

Intuitive control

Simple to operate colour touchscreen allows for easy customisation of day-to-day tasks via selectable onscreen icons.

Mobile connectivity

Perform any task from portable devices with a suite of enhanced mobile connection options.

High security

Control access and keep your files confidential with a range of advanced security and encryption options.

Compact design

Optimised for small offices with flexible, space saving design.

Cloud control

Maximise your investment with uniFLOW Online Express, our cloud-based print management solution.

Features

• 43ppm
• Print, copy, scan, send and fax
• Double-sided printing and one-pass scanning
• Network, Wi-Fi, USB, QR code & NFC connectivity
• Encrypted PDF & Device Signature PDF
• 2,300 sheets max capacity

Specification

Machine type

• Monochrome A4 Laser Multifunctional

Core functions

• iR 1643iF: Print, Copy, Scan, Send and Fax

Processor

• Canon Custom Processor

Control Panel

• 12.7cm/5" TFT LCD WVGA Colour Touch panel

Memory

• Standard: 1.0GB RAM

Interface Connection

NETWORK Standard:

• 1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), NFC (iR 1643iF only), Wi-Fi Direct Connection

OTHERS Standard:

• USB 2.0 (Host) x2, USB 2.0 (Device) x1

Paper Supply Capacity (A4, 80 gsm)

• Standard: 650 sheets
• Paper Cassette: 550-sheet
• Multi-purpose tray: 100-sheet
• Maximum: 2,300 sheets (with Paper Feeder PF-C1 (x3)

Dimensions (W x D x H)

• 1643iF: 494 x 595 x 452 mm (with the Multi-purpose tray extended)

Installation Space (W x D)

• 1643iF: 708 x 1105 mm (with Cassette open + 100 mm gap around the main body)

Weight

• Standard: Approx. 19 kg without toner

Print Speed (BW)

• 43 ppm (A4)

Print Resolution

• 600 × 600 dpi

Print Quality with Image Refinement Technology

• Up to 1200 x 1200 dpi

Page description languages

• Standard: UFR II, PCL6, PCL5, Adobe®PostScript®3TM

Direct Print

• Direct printing available from USB memory, LPR
• Supported file types: TIFF, JPEG, PDF and XPS (only LPR)

Printing from mobile and cloud

• Apple Air Print, Canon PRINT Business, Mopria, Google Cloud Print, and uniFLOW Online

Operating System

• UFRII/PCL/PS: Windows®7/8.1/10/Server 2008/Server2008 R2/Server2012/Server2012 R2/Server2016, Mac OS X (10.9 or later)
