You can use various graphics and utility cards with one PCIe 4.0 x16, one PCIe 3.0 x16, and one PCIe 3.0 x1 slot. USB 3.2 Gen 1 and Gen 2 ports allow you to experience enhanced transfer speeds for external storage devices as well as resource-demanding peripherals. A 2.5 GbE RJ-45 port is available for enhanced network performance, essential for competitive online gaming. Various addressable RGB headers allow you to set up custom lighting effects for a truly unique style.

Power Design

The Z590M GAMING X uses a 12+1 Phase Digital Power Design, DrMOS, and 90A Smart Power Stage to maintain electrical stability for your components. Power Architecture works in conjunction with onboard digital PWM, high current capacity MOSFET, and solid-capacitor array to regulate power efficiency for your CPU, giving you optimal performance for your build and improving transient response.

PCIe 4.0 Hardware Design

When using an Intel 11th Gen CPU, you can experience enhanced PCIe performance. A single expansion port and M.2 connection can utilize PCIe 4.0 protocols for faster program loading and boosting overall system functionality.

XMP Support

Tap into Intel Extreme Memory Profile (XMP) technology and overclock your RAM with ease. XMP allows you to load predefined profiles through the operating system, giving you optimal performance depending on your PC use.

Thermal Design

A fully covered MOSFET heatsink and M.2 Thermal Guard help dissipate heat, ensuring onboard components are protected against damage caused by excessive heat. Smart Fan 6 offers various cooling features that ensure proper thermal performance while staying cool and quiet. Install system fans with four headers while six internal temperature sensors monitor the motherboard and activate cooling fans when needed. Smart Fan 6 BIOS allows you to adjust when fans turn on and off, putting system controls in your hands.

Connectivity

The Z590M GAMING X is equipped with various ports designed to enhance your external device performance. USB 3.2 Gen 2 Type-C and Type-A ports provide transfer speeds up to 10 Gb/s, suitable for audio and video equipment. USB 3.2 Gen 1 Type-A ports are also available for additional resource-demanding peripheral support. Additionally, a 2.5 Gigabit Ethernet port reinforces your wired network connectivity, giving you quicker upload and download speeds while also giving you the upper hand in online competitive games.

Hi-Res Audio

Built with high-end audio capacitors, the Z590M GAMING X delivers high-resolution, high-fidelity audio, producing realistic sound effects suitable for your games. An audio noise guard separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Designed for Durability

The solid and durable Z590M GAMING X motherboard uses PCIe Armor and patented double locking bracket to reinforce the PCIe slot, providing extra strength for heavy components like graphics cards and reducing ESD interference. Solid-pin power connectors provide a larger contact area for electrical efficiency, prolonging the lifespan of your motherboard.

RGB Fusion

Embrace style and equip your build with a unique lighting aesthetic that signifies your personal style. Addressable RGB headers allow you to create unique lighting effects with the included RGB Fusion 2.0 software. The RGB Fusion App allows you to easily adjust lighting effects from an external device, allowing you to change settings easily without interrupting your game.

GIGABYTE BIOS

Easily adjust various aspects of your PC with intuitive BIOS software, designed to put you in control of your system. Easy Tune and System Information Viewer allow you to easily set overclocking parameters and monitor the status of your system. Download additional programs with the APP Center which gives you additional utilities for your build. Additionally, you can update the BIOS easily when building with Q-Flash Plus, which makes upgrading easy.

Features

• Supports 11th and 10th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
• Shielded Memory Routing for Better Memory Overclocking
• Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
• Fast 2.5GbE LAN with Bandwidth Management
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
• Rear USB 3.2 Gen2 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting devices
• Pre-installed IO Shield for easy and quick installation
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specification

CPU

LGA1200 package:

• 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
• 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*

* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

• L3 cache varies with CPU

Chipset

Intel® Z590 Express Chipset

Memory

11th Generation Intel® Core™ i9/i7/i5 processors:

Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version, HDCP 2.3.

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Audio

• Realtek® Audio codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)

Expansion Slots

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

* Supported by 11th Generation processors only.

• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 1 x PCI Express x1 slots

(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

CPU:

• 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*

*Supported by 11th Generation processors only.

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

USB

Chipset:

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports available through the internal USB header

Chipset+USB 2.0 Hub:

• 2 x USB 2.0/1.1 ports available through the internal USB header

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 4-pin ATX 12V power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 6 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connector
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

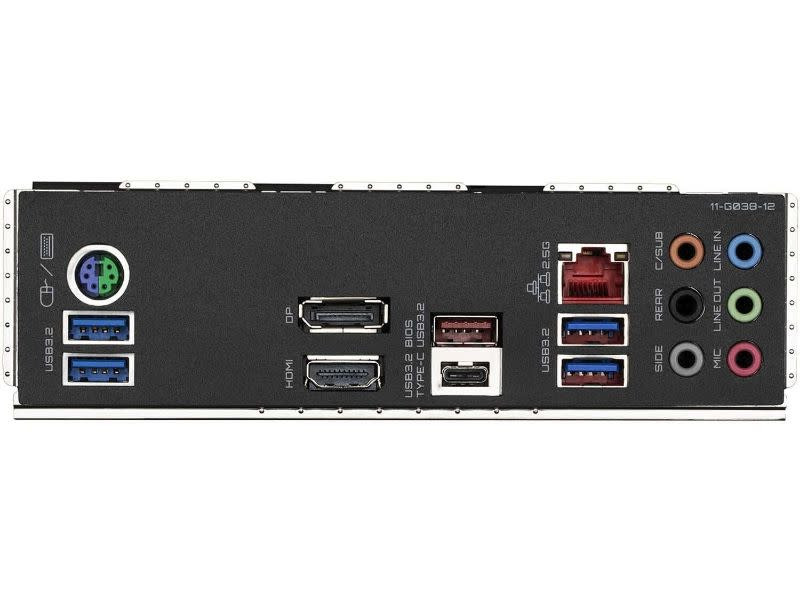

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 4 x USB 3.2 Gen 1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 6 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

Operating System

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
