Power efficiency plus high-resolution graphics, thanks to the integrated Intel Celeron® Dual-Core SoC Processor J1800 with HD Graphics support.

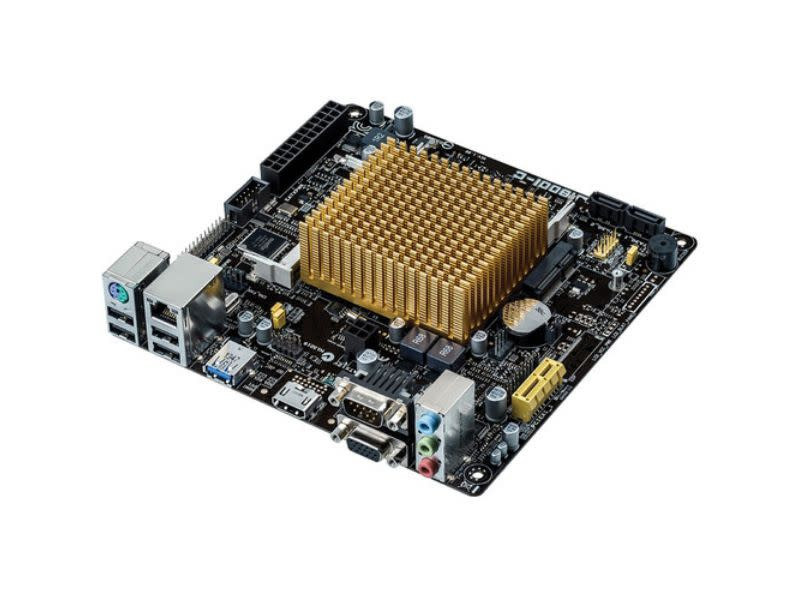

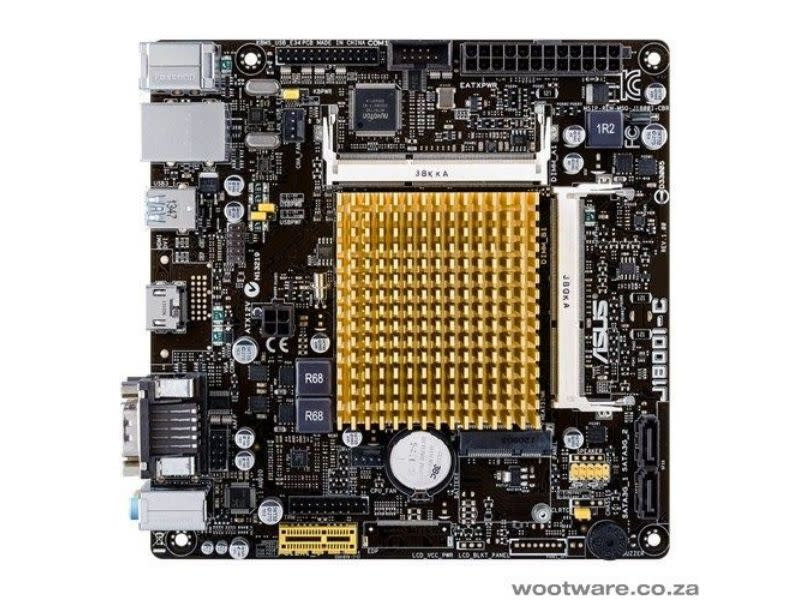

This motherboard features an integrated Intel Celeron® Dual-Core Processor J1800 and Intel HD Graphics. This revolutionary 22nm ultra low voltage SoC (System On a Chip) combines superb processing power and advanced HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display the latest DirectX® 11 HD graphics. It features support for dual independent displays with resolutions up to 2500x1600, and also has integrated USB 3.0 support.

New UEFI BIOS – friendlier and more intuitive

Exclusive EZ Mode adds useful info to become even easier

Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.

USB 3.0 Boost (UASP Support)

170% faster transfer speeds than traditional USB 3.0

ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

AI Suite 3

One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Fan Xpert

Dedicated CPU and case fan controls

ASUS Fan Xpert intelligently allows you to adjust CPU and case fan speeds according to different ambient temperatures in diverse climate conditions and locations, as well as actual PC loading. Various preset fan performance profiles offer flexible fan speed controls to achieve a quiet and cool environment.

CrashFree BIOS 3

Restore corrupted BIOS data from USB storage

ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash drive or support CD containing a BIOS file. This utility saves you the cost and hassle of buying a replacement BIOS chip.

EZ Flash 2

Easy BIOS updates from USB outside the OS

Quickly update your BIOS from a USB flash drive before entering the OS. It only takes a few clicks, with no floppy disk or an OS-based flash utility.

Stainless Steel Back I/O

3X more durable corrosion-resistant coating

ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.

High-Quality 5K-Hour Solid State Capacitors

2.5X longer lifespan with excellent durability

ASUS high-quality solid state capacitors assure a 5,000-hour lifespan, equivalent to 2.5 times longer than traditional capacitors. All capacitors pass testing under temperatures as high as 105 degrees centigrade and meet Japanese industrial standards to provide excellent durability and enhanced thermal capacity.

ASUS Boot Setting

Multiple startup options

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

*On select models

GreenASUS

Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.

Features

• New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
• USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
• Network iControl: Real-time network bandwidth management
• CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
• AI Suite 3: One-stop access to innovative ASUS features

Specification

CPU

• Intel® Celeron® Dual-Core J1800 SoC onboard Processors

Memory

• 2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor

Multi-VGA output support : HDMI/RGB ports

• - Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
• - Supports RGB with max. resolution 2560 x 1600 @ 60 Hz

Maximum shared memory of 512 MB

Supports DirectX 11

Expansion Slots

• 1 x PCIe 2.0 x1
• 1 x mini-PCIe *2

Storage

Built-in Controller :

• 2 x SATA 3Gb/s port(s), dark brown
• Supports Intel® Smart Connect Technology

LAN

• Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *1

• - Supports : Jack-detection, Front Panel Jack-retasking

USB Ports

Built-in Controller :

• 1 x USB 3.1 Gen 1 port(s) (1 at back panel, blue)

Built-in Controller :

• 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

Operating System Support

• Windows® 8.1
• Windows® 8
• Windows® 7

Please update your BIOS and drivers to the latest version to support Windows 7

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x USB 3.1 Gen 1
• 4 x USB 2.0
• 1 x COM port(s)
• 3 x Audio jack(s)

Internal I/O Ports

• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x TPM header
• 1 x LPT header
• 1 x COM port(s) connector(s)
• 2 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x Buzzer

BIOS

• 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Special Features

ASUS Exclusive Features :

• - AI Suite 3
• - Ai Charger
• - Anti-Surge

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

• - Network iControl
• - USB 3.0 Boost

ASUS Quiet Thermal Solution :

• - ASUS Fan Xpert

ASUS EZ DIY :

• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 2
• - ASUS MyLogo 2

Form Factor

• Mini ITX Form Factor
• 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
