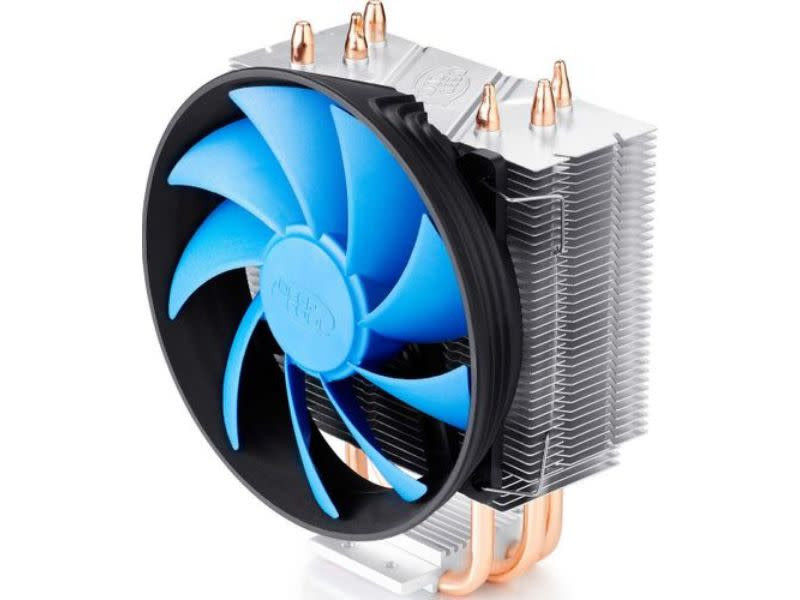

Effective Cooling Performance

3 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating.

Ф120 x 25 mm PWM-capable Fan

Ф120 x 25 mm PWM-capable fan offers perfectly balances powerful airflow and reduced noise.

Universal Socket Compatibility

Equipped with multiple clips to support Intel LGA1366/1156/1155/1151/1150/775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.

Easy Installation

Can be easily installed without moving the motherboard.

Features:

• -3 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating
• -120x120x25mm PWM-capable fan offers perfectly balances powerful airflow and reduced noise
• -Can be easily installed without moving the motherboard
• -Excellent cooling performance up to 130W

Application For:

Intel Socket 130W:

• -LGA1366/1155/1156/1151/1150/775
• -High End Desktop i9/7
• -Core i7 Extreme/i7/5/3
• -Core 2 Extreme/Quad/Duo
• -Pentium/Pentium G
• -Celeron/Celeron G

AMD Socket 125W:

• AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

(NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2)

Ryzen

• -APU A12/10/8/6/4
• -FX 8/6/4-Core
• -Phenom II X6/4/3/2
• -Athlon II X4/3/2
• -Athlon X4

Specification:

• -Overall Dimension: 121X75.5X135.7mm
• -Fan Dimension: 120X120X25mm
• -Net Weight: 473g
• -Bearing Type: Hydro Bearing
• -Rated Voltage: 12VDC 0.13A 1.56W
• -Operating Voltage: 10.8~13.2VDC
• -Started Voltage: 7VDC
• -Fan Speed: 900±150-1600±10%RPM
• -Max. Air Flow: 55.50CFM
• -Noise: 17.8~21dB(A)
