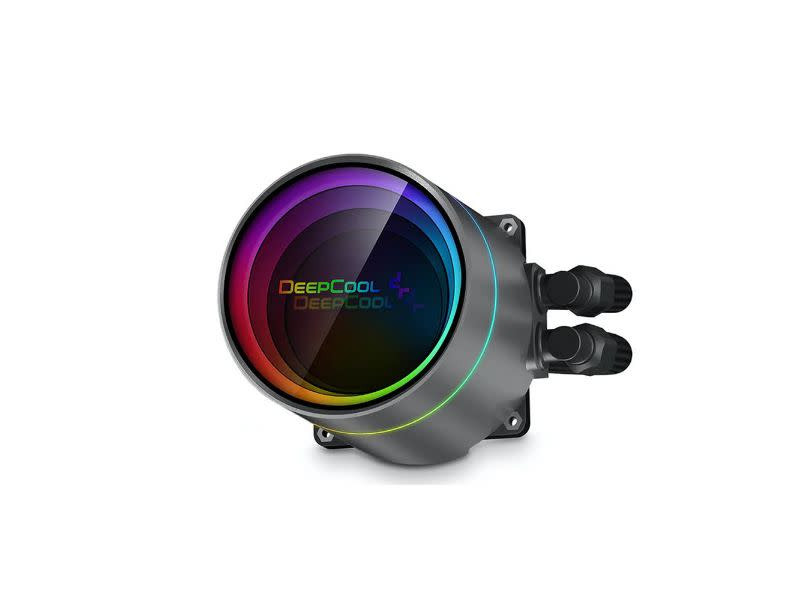

BETTER BY DESIGN

The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.

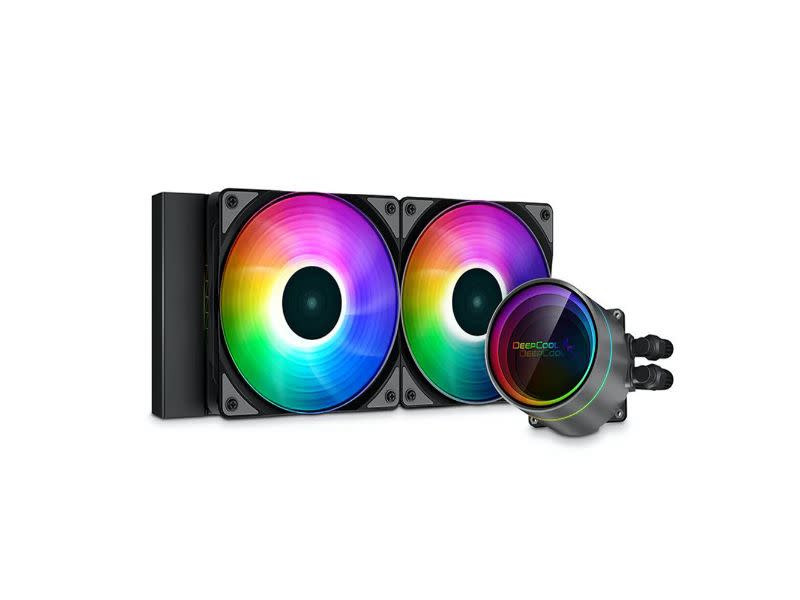

SHINE ON

Two DeepCool CF120 series PWM fans output brilliant color with 12 RGB LEDs per fan.

EFFICIENT COOLING

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

POWERFUL AND QUIET

A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

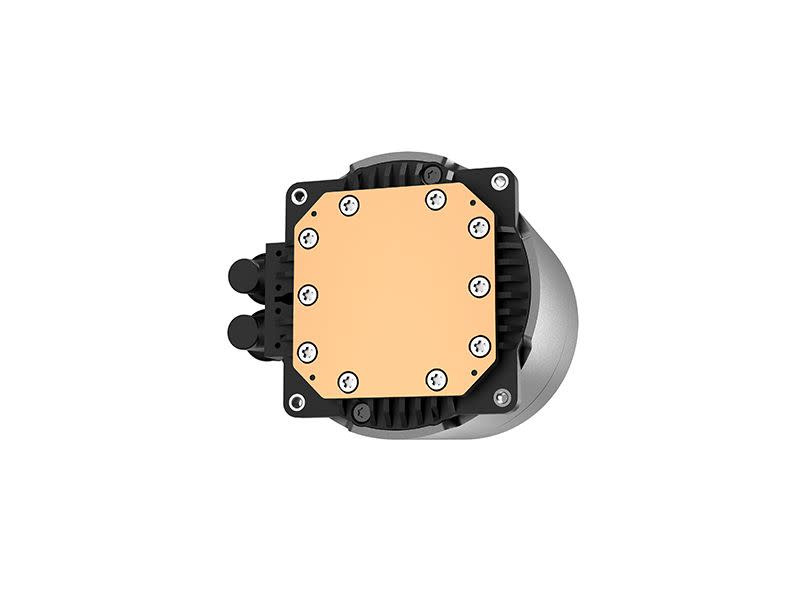

MORE SURFACE AREA

With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

PROTECT WHAT’S YOURS

After 3 years of R&D, DeepCool launched a new standard for liquid cooling systems—Anti-Leak Technology.This new design helps regulate system pressure balance to significantly improve operational safety and minimize leakage.

Specification

• Net Weight 1380 g
• Radiator Dimensions 282×120×27 mm
• Radiator Material Aluminum
• Tube length 380 mm
• Pump Dimensions 86 ×75×71 mm
• Pump Speed 2550 RPM±10%
• Pump Noise 17.8 dB(A)Pump Connector 3-pin
• Pump Rated Voltage 12 VDC
• Pump Rated Current 0.2 A
• Pump Power Consumption 2.4 W
• Fan Dimensions 120×120×25 mm
• Fan Speed 500~1800 RPM±10%
• Fan Airflow 69.34 CFM
• Fan Air Pressure 2.42 mm
• AqFan Noise ≤30 dB(A)
• Fan Connector 4-pin PWM
• Bearing Type Hydro Bearing
• Fan Rated Voltage 12 VDC
• Fan Rated Current 0.17 A
• Fan Power Consumption 2.04 W
• LED Type Addressable RGB LED
• LED Connector 3-pin(+5V-D-G)
• LED Rated Voltage 5 VDC
• LED Power Consumption 2.25 W（PUMP）/ 4.4 W（FAN×2）

Application For

Intel

• LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD

• sTRX4/sTR4/AM4
