SKU: UGT-ST644R

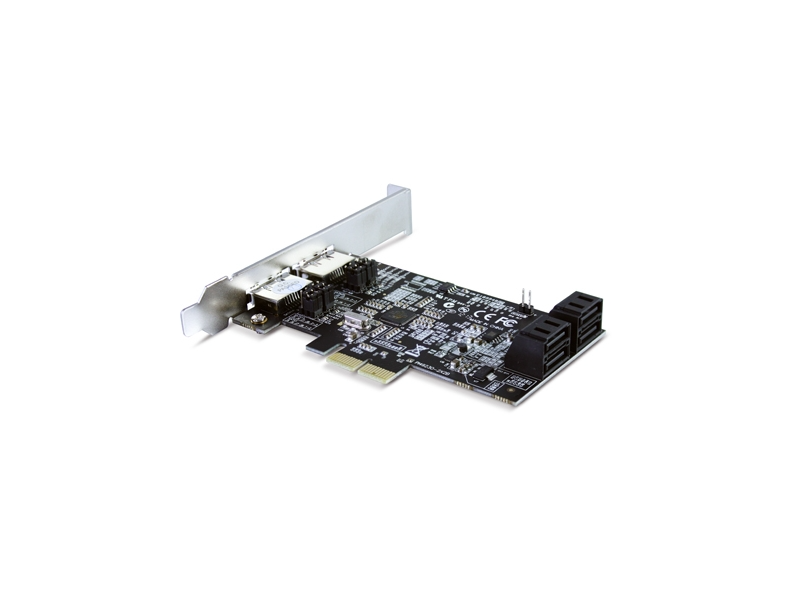

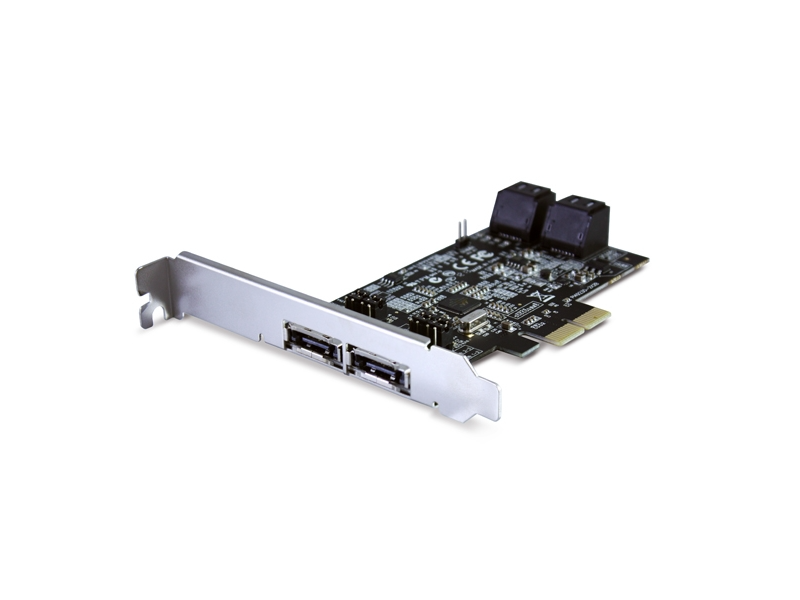

Vantec 4 Channel 6-Port SATA 6Gb/S PCIe RAID Host Card

The UGT-ST644R design encompasses great design and server technology into simple RAID Host controller. It uses the latest storage technology to bring SSD caching storage to the HDD drive to gain unparalleled access speed. This RAID Host controller enables the use of the industry's newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 3Gb/s or 1.5Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Come standard for PCI Express 2.0 to double the bandwidth of the existing PCI Express bus for faster data throughput thus enhancing system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It is also backward compatible with previous generation of PCI Express 1.0 technology. Using the onboard RAID firmware, the 4 SATA drives attached to this controller can be easily configured as 4 individual ports with no RAID or with RAID 0, RAID 1, RAID 10, and HyperDuo capabilities.

Out of Stock

HyperDuo is a Technology Created by Marvell that Encompasses Both SSD and HDD Technologies to give You the Speed Without the Premium Price
SATA III 6Gb/s on Every Channel for all your SSDs and HDD. This Offers the Maximum Performance for all your Drives
RAID 0, 1, 10 and HyperDuo Function for Redundancy to Keep your DATA Safe and at the same time Faster Disk Access
6 Flex Configurable Port for configuring as Internal SATA or External eSATA Port using simple setting on the Host Card
4 Channel for Additional Devices. This Card will let You Grow as Your Needs Grow to Add more Devices to your System
Port Multiplier Function For Multi-Bay Enclosures to Minimize multiple cable and Maximize Storage, Support both FIS and Command-based Switching
More lanes to Prevent bottleneck for All the SATA III drives Moving Data between the Drives and the System Board
Low Profile Bracket Included to Simplify Your Installation into Standard Desktop or SlimLine or Low Profile System
Stable Technology with Great Compatibility to provide Faster and Wider Bandwidth for DATA Flow between the Drives and your System

Model: UGT-ST644R

Drive Capacity: 8TB* Hard Drive

SATA Ports: 4 Channel, Configurable as 4 Internal SATA III, 6Gb/s Ports or a combination of Internal and External (eSATA) Ports (All Backward Compatible with SATA II/I)

Dimension: 111 x 68 x 18mm

Interface: PCIe v2.0, require x4 or better PCIe slot

System Requirements: Windows XP/Vista/7/8/10 and Server 2008 R2. PCI Express x4, x8 or x16 slot

What's included: 4 Channel 6-Port SATA 6Gb/s PCIe RAID Host Card, Driver CD, User Manual, Low Profile Bracket, 2 SATA Cables
