• Intel Thunderbolt 3 Certified add-in card
• Intel DSL7540 Thunderbolt 3 controller
• Dual Thunderbolt 3 Ports (USB Type-C)
• Max Bandwidth 40 Gb/s
• DisplayPort 1.4 Capable with 4K Video Throughout
• Daisy-chain up to 12 Devices (6 devices per port)
• Support PD3.0 standard (up to 100W)

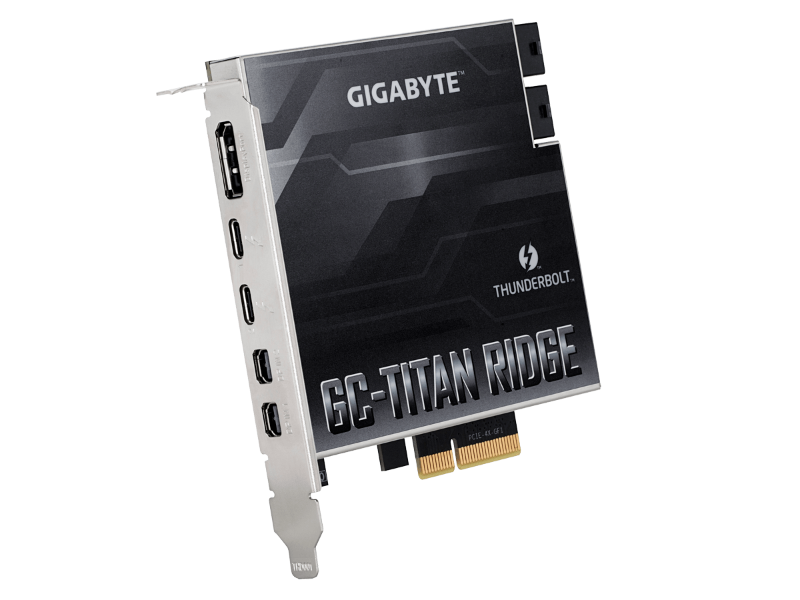

40 Gb/s Intel Thunderbolt 3 Certified Add-in Card

The GC-TITAN RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards with the new and faster Thunderbolt 3 connectivity without having to upgrade to a whole new system.

Dual Thunderbolt 3 – The fastest 40Gb/s single-wire connection

Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch.

Daisy-chain Multiple Devices

Support for DisplayPort 1.4 makes Thunderbolt™ 3 a must have for any enthusiast. GIGABYTE GC-TITAN RIDGE support two displays in 4K* resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.

Certified Motherboards with GC-TITAN RIDGE

The GC-TITAN RIDGE is compatible with GIGABYTE motherboards that featured a Thunderbolt™ header, refer the list as below.

* Supported status may vary depending on motherboard specifications.

* Support for Windows 10 64-bit with RS3 or later.

Series Model

Z390 series (Recommend to install on CPU PCIe x16 slot)

(Support by PCH PCIe x4 slot only)

Z390 AORUS MASTER

Z390 AORUS ULTRA

Z390 AORUS PRO WIFI

Z390 AORUS PRO

Z390 AORUS ELITE

Z390 GAMING X

Z390 UD

Z390 M GAMING

Z390 M

Z390 GAMING SLI

H370 series

(Support by BIOS F10 or after, PCH PCIe x4 slot only)

H370 AORUS GAMING 3 WIFI

H370 AORUS GAMING 3

H370 HD3

B360 series

(Support by BIOS F10 or after, PCH PCIe x4 slot only)

B360 AORUS GAMING 3 WIFI

B360 AORUS GAMING 3

B360 HD3P

B360 HD3

B360M D3P

Z370 series

(Support by BIOS F11 or after, PCH PCIe x4 slot only)

Z370 AORUS GAMING 7

Z370 AORUS GAMING 7-OP

Z370 AORUS GAMING 5

Z370 AORUS ULTRA GAMING WIFI 2.0

Z370 AORUS ULTRA GAMING WIFI

Z370 AORUS ULTRA GAMING WIFI-OP

Z370 AORUS ULTRA GAMING 2.0-OP

Z370 AORUS ULTRA GAMING 2.0

Z370 AORUS ULTRA GAMING

Z370 AORUS GAMING 3

Z370 AORUS GAMING K3

Z370 AORUS GAMING WIFI

Z370 UD3H Z370XP SLI

C246 Workstation/Server series

(Support by PCH PCIe x4 slot only)

C246-WU4

C246M-WU4

C621 Workstation/Server series

(Support by PCH PCIe x4 slot only)

C621-WD12-IPMI

*Recommend to install on CPU PCIe x16 slot

C621-WD12

*Recommend to install on CPU PCIe x16 slot

C621-SU8

X299X series

(Support by PCH PCIe x8_2 slot only)

X299X AORUS MASTER

X299 Workstation/Server series X299-WU8

*Requires additional USB 3.0 19-pin female to USB 2.0 9-pin male cable for proper functioning (P/N: 12CR1-FUB001-01R)

AMD X570 series

(Recommend to install on PCH PCIe x4 slot)

(Recommend to update to latest BIOS version)

X570 AORUS XTREME 1.1

X570 AORUS MASTER 1.1

X570 AORUS ULTRA 1.1

X570 AORUS PRO WIFI 1.1

X570 AORUS PRO 1.1

AMD B550 series

(Recommend to install on PCH PCIe x4 slot)

(Recommend to update to latest BIOS version)

B550 AORUS MASTER

B550 AORUS PRO AC

B550 AORUS PRO AX

B550 AORUS PRO

B550 AORUS PRO V2

B550M AORUS PRO

B550M AORUS PRO-P
