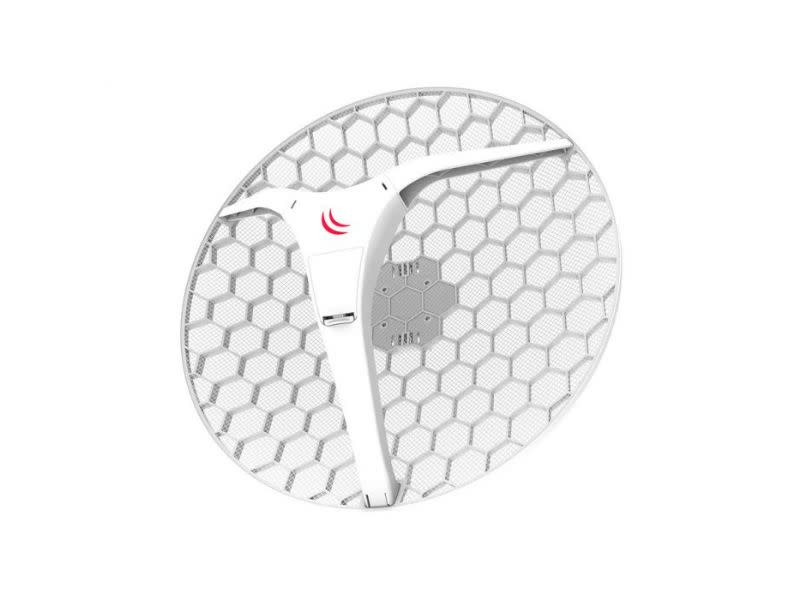

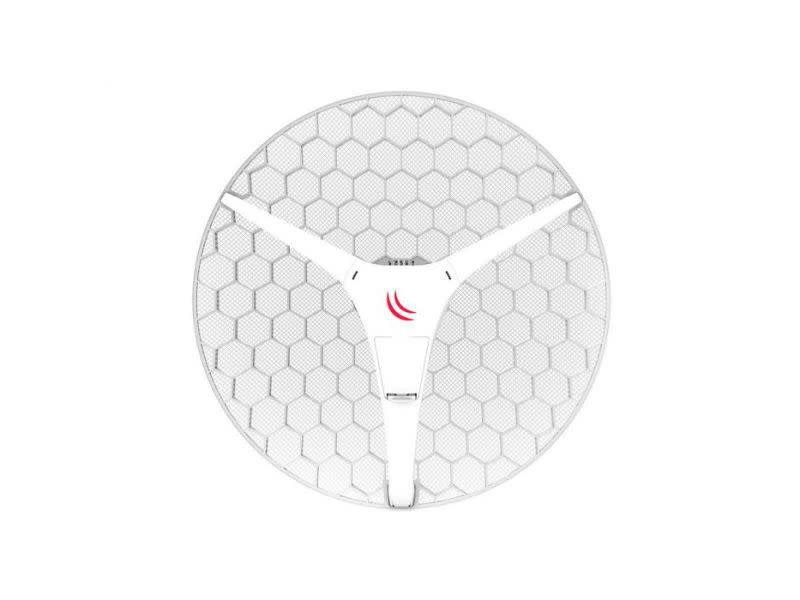

MikroTik's RB-LHG5ACXL Light Head Grid (LHG) is a compact, light, long-range 5GHz 802.11ac wireless device with an integrated dual polarization 27 dBi grid antenna. It is ideal for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping but is easy to assemble and includes a simple to use grounding attachment point.

Specifications

• Antenna Gain: 27dBi
• Beam-width: 7°
• Data Rate: 5.8GHz: 867Mbps
• Ethernet Ports: 1x 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 7W
• Mounting: Pole Mount
• Operating System: RouterOS (Level 3 Licence)
• Operating Temperature: -40°C to 70°C
• PoE Input: 10-30V (Passive PoE)
• PoE Output: None
• Power Input: 24V 0.38A Power Supply (Included)
• Serial Interface: None
• SIM Slots: None
• Supported Voltage Range: 10-30V
• USB Ports: None
